TMxCore
Immersive. Speech Intelligent. Compliant

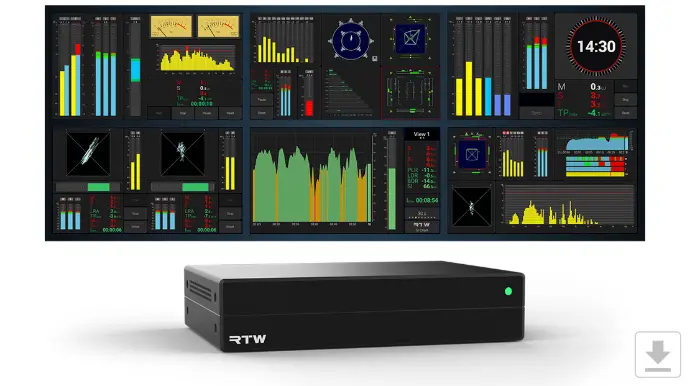

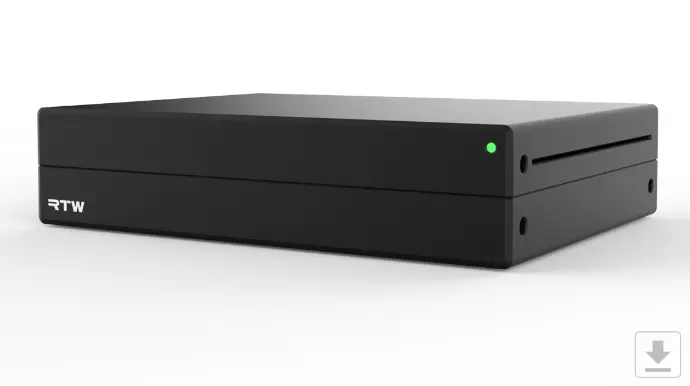

The RTW TMxCore is the next evolution of our trusted TouchMonitor TM7/TM9, designed to deliver unmatched flexibility, processing power, and future-readiness for professional metering environments. With DisplayPort output, Network Display support, high-performance architecture, and full compatibility with RTW’s renowned metering suite, TMxCore provides the same precision and reliability users expect, now in a compact, adaptable format.
Built for modern and evolving workflows, TMxCore is ideal for installations where performance, integration, and flexibility are key.
It supports AI-driven tools like speech intelligibility metering and immersive audio analysis, while Network Display enables real-time metering in any standard web browser, perfect for remote monitoring or multi-screen setups.
This launch marks not only a new product, but a new foundation for intelligent metering, powered by TMxCore.
Key Features
- RTW’s latest high-end, high-performance broadcast and pro audio metering platform

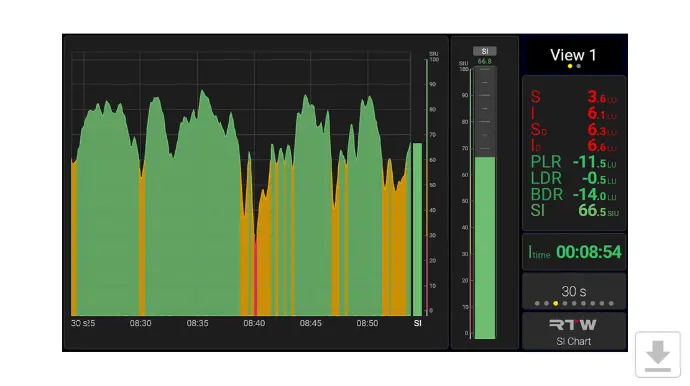

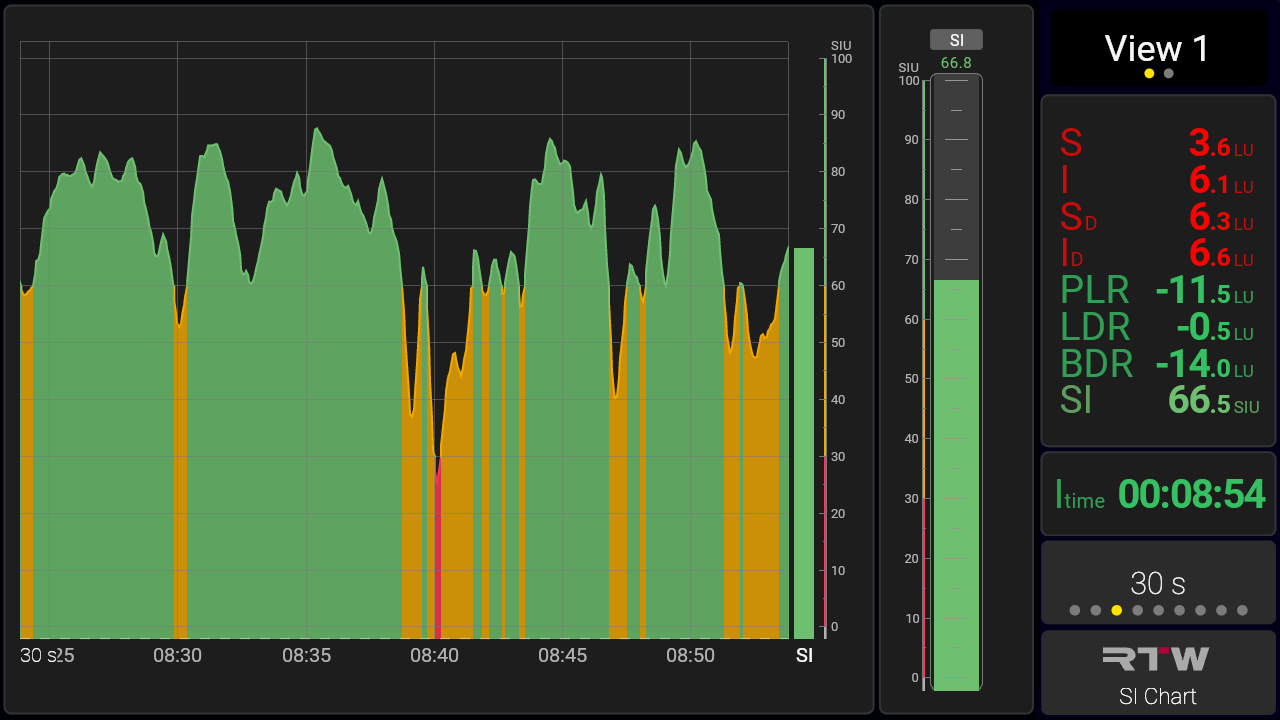

- AI-assisted tools for advanced speech intelligibility analysis

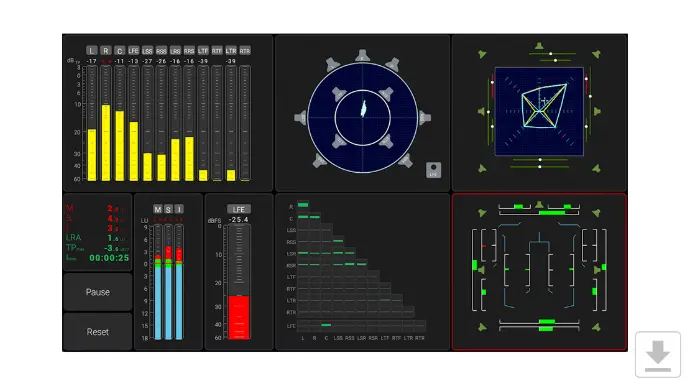

- Immersive audio metering for surround and immersive formats including 5.1 and 7.1.4
- Fully compliant suite of loudness and metering instruments
- Network Display: view your meters in any browser, anywhere
- DisplayPort output for direct connection to any monitor
- Network-ready with RAVENNA®, AES67, ST 2110, Dante®, and traditional I/O options
- Designed for modern workflows: perfect for fixed installations, multi-screen setups, multi-viewers, and OB vans
TMxCore Instruments & Tools
TMxCore delivers a full suite of metering and analysis tools for immersive, speech-intelligent, and compliant workflows.

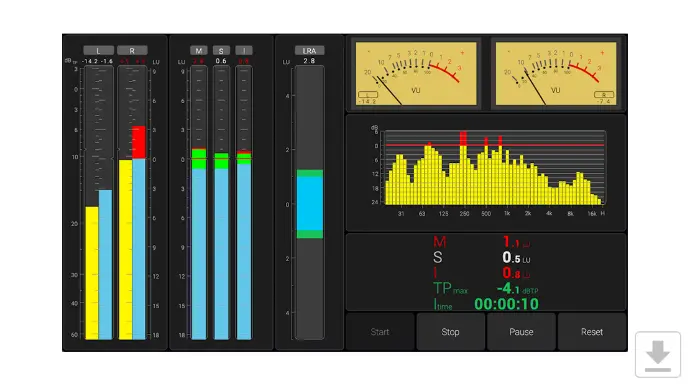

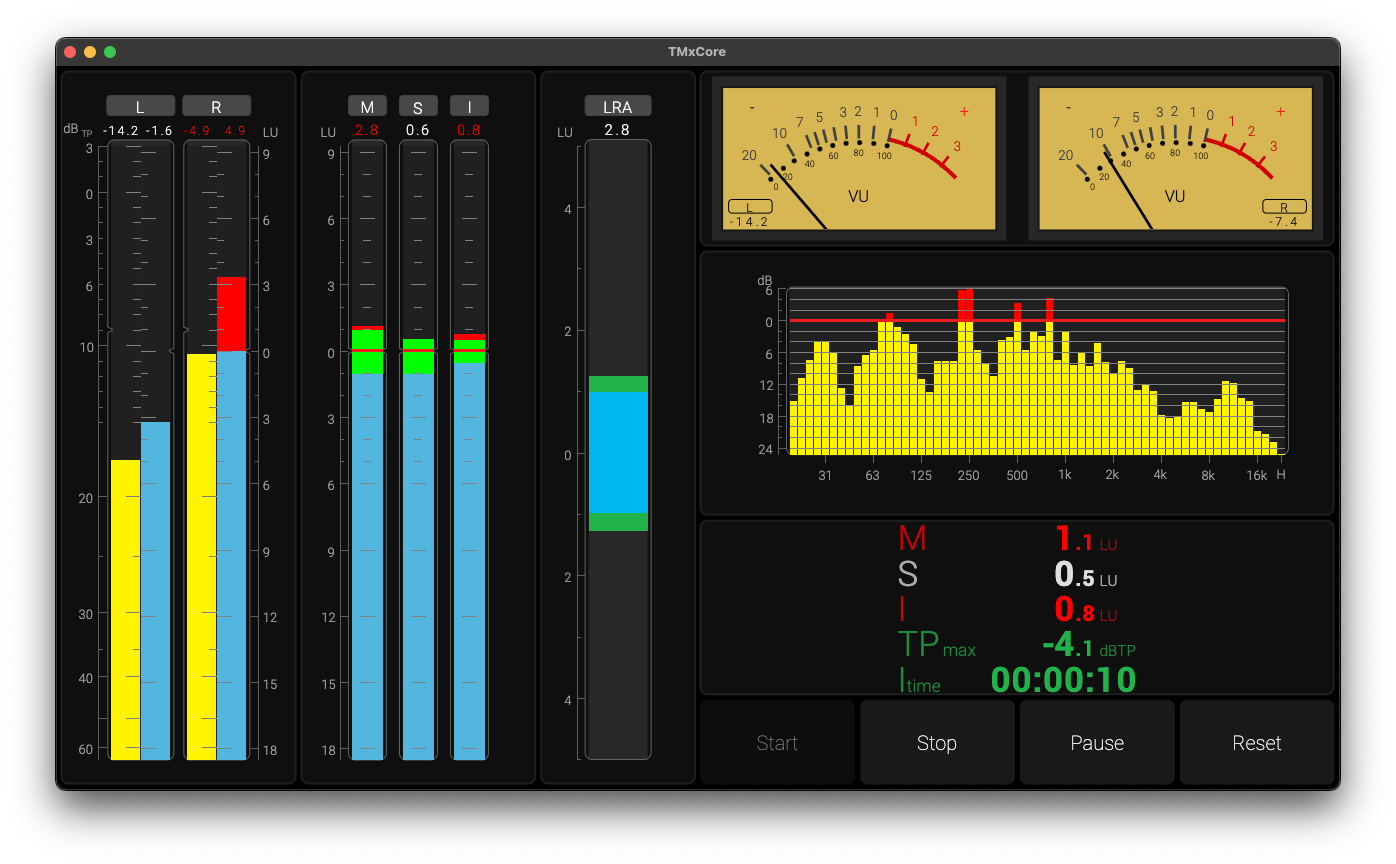

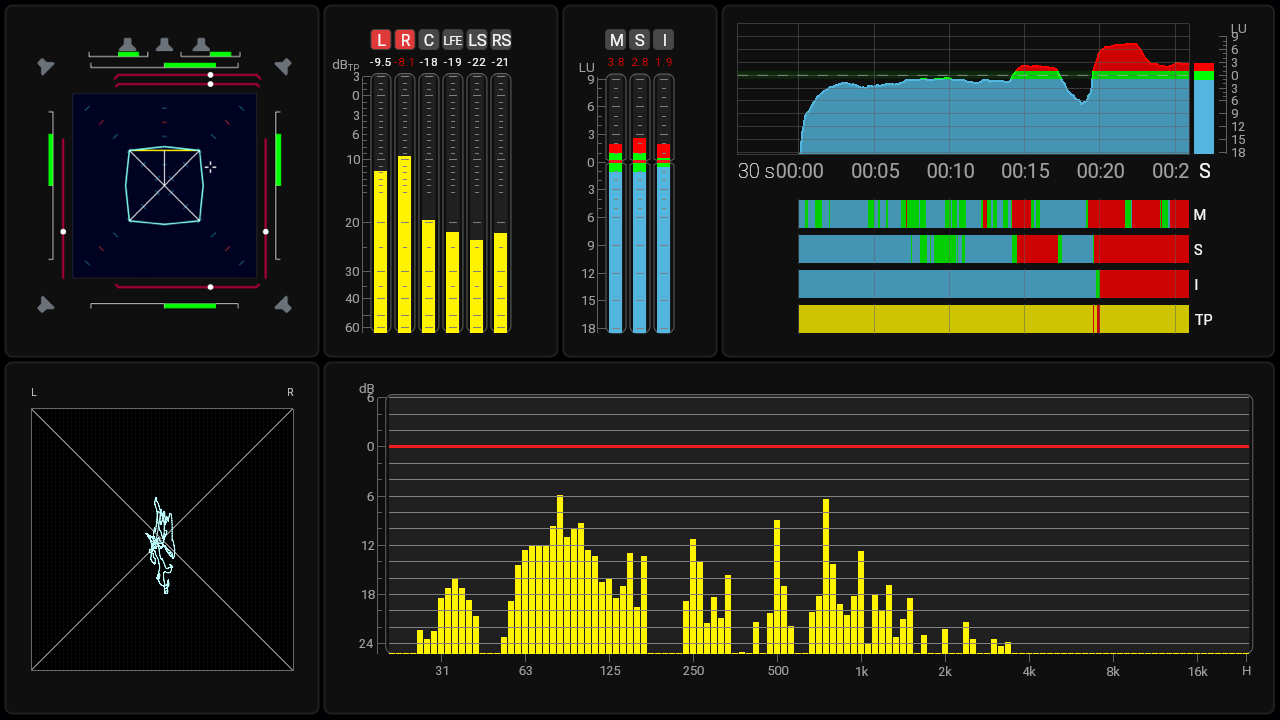

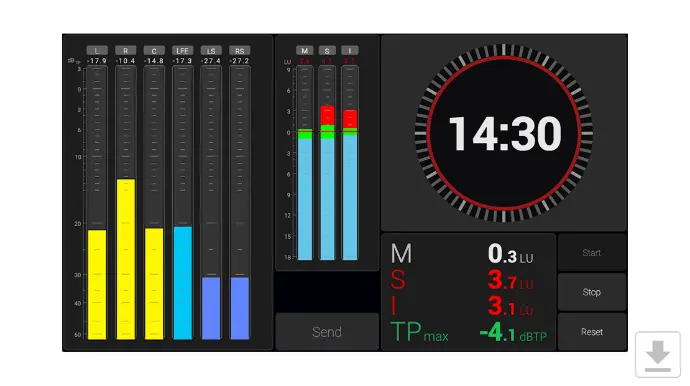

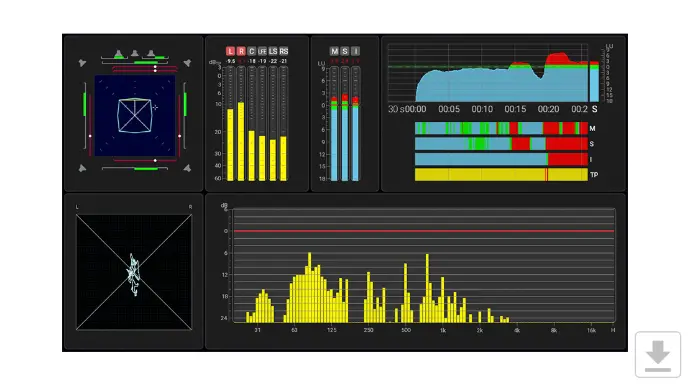

Level and loudness meters, stereo and phase tools, and detailed spectral analysis ensure precision at every stage. Immersive and speech-intelligibility instruments reveal balance, clarity, and listener impact. System and compliance tools keep performance and standards in check, all within one powerful platform.

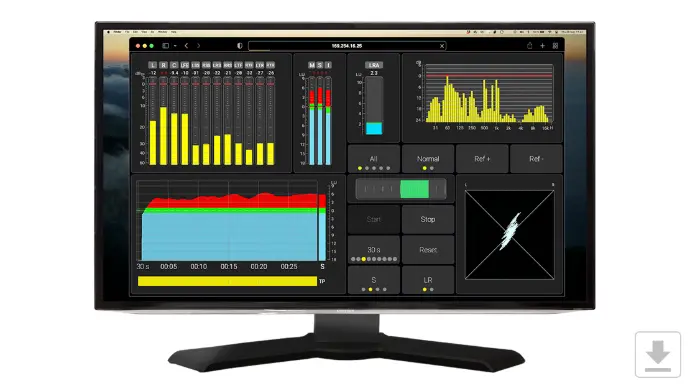

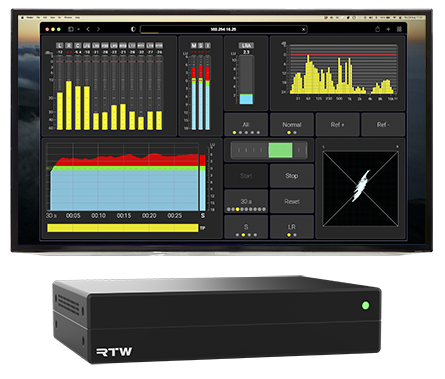

Network Display
Metering Anywhere, Anytime

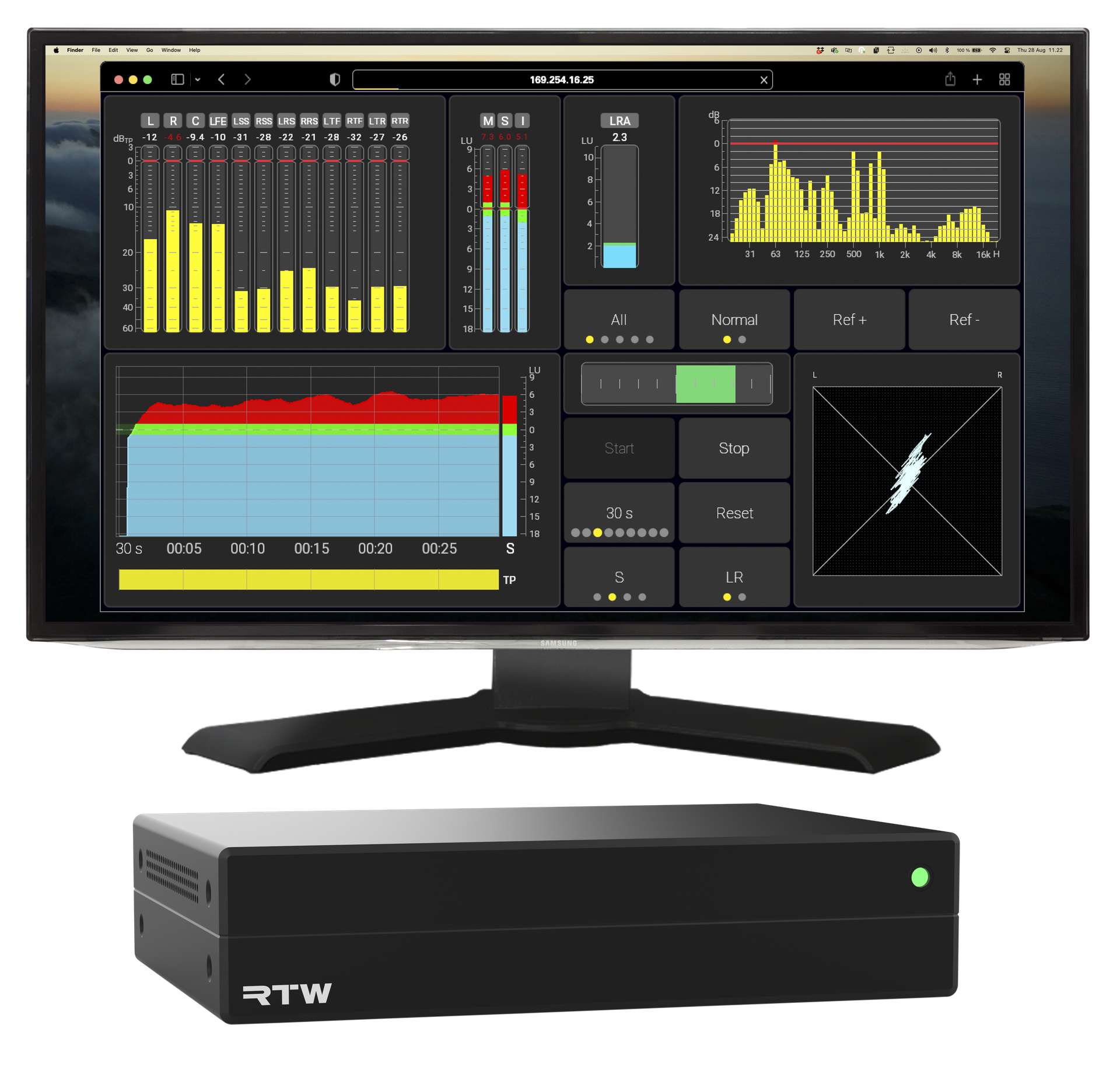

With Network Display, engineers, mixers, and operators can view real-time audio measurements anywhere on the local network using a standard web browser - without the need for extra hardware.
Whether monitoring from the control room, a production suite, or across multiple workstations, Network Display provides unmatched flexibility and helps streamline workflows.
You can expand the Network Display feature by adding additional screens through licenses. Each extra screen effectively acts as a new metering instance in your setup - delivered at just the cost of a license.

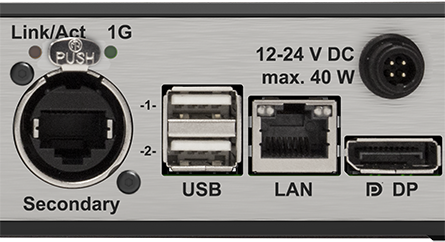

Built for Audio over IP networks

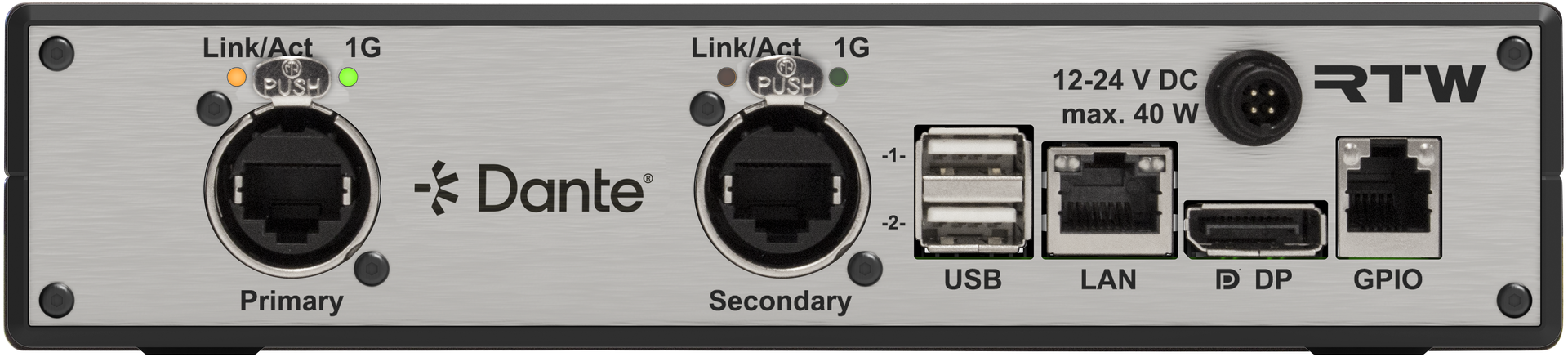

Separate audio and control ports.
The TMxCore is purpose-built for Audio-over-IP environments, supporting Dante®, Ravenna®, AES67, and ST 2110 protocols.
A dedicated control network port allows users to separate audio and control traffic for improved stability and security.
Four Versions
Network-ready with RAVENNA® or Dante®, or classic I/O Options.

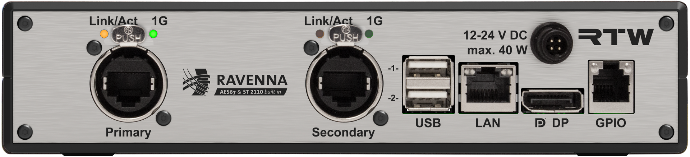

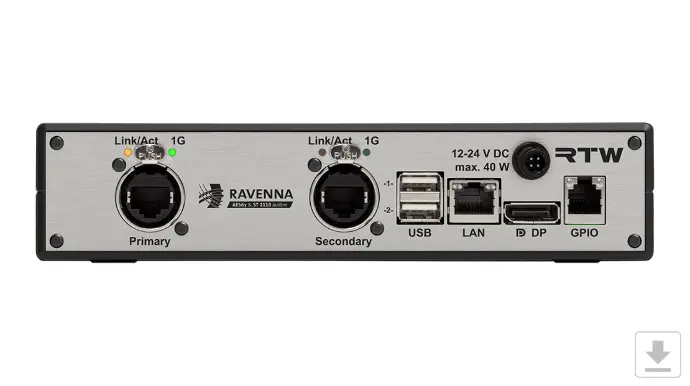

TMxCore with AoIP RAVENNA® RJ-45
230018NR
- 32 ch RAVENNA®/AES67/ST 2110 AoIP (RJ-45)
- Separate audio and control networks

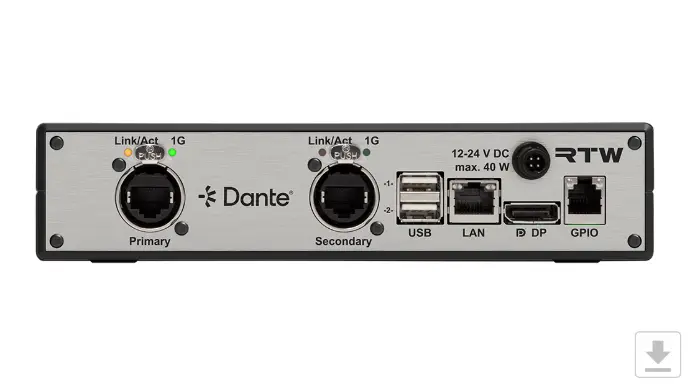

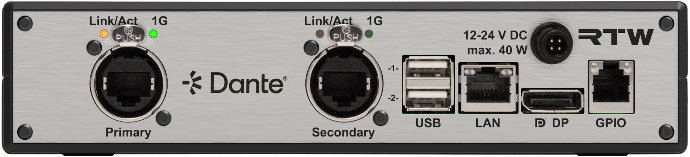

TMxCore with AoIP Dante® RJ-45
230017NR
- 32 channel Dante® AoIP (RJ-45)
- Separate audio and control networks

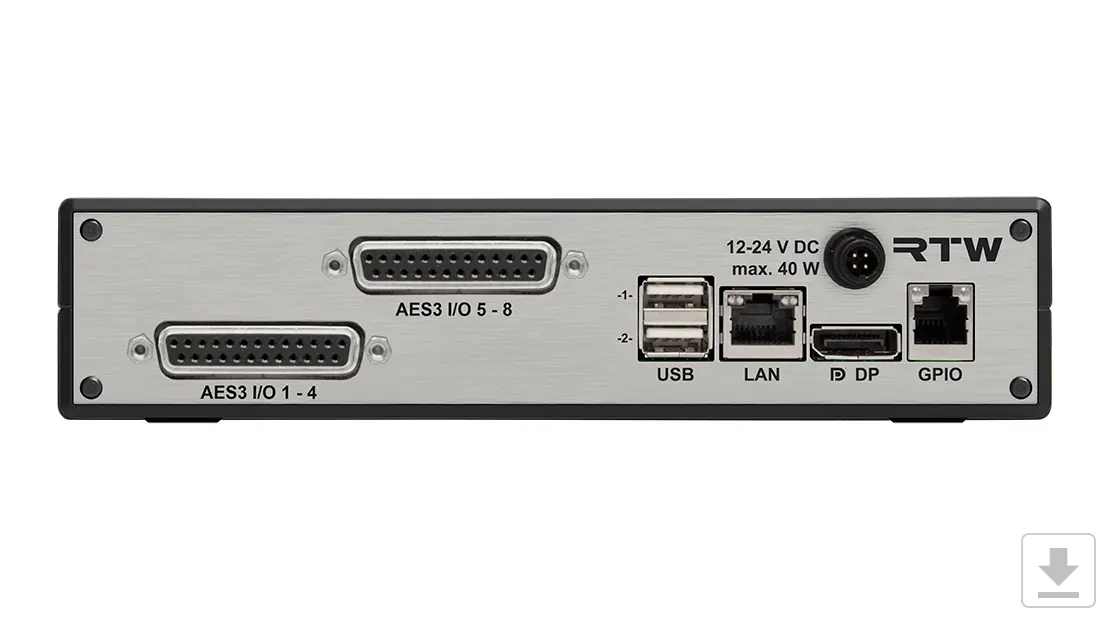

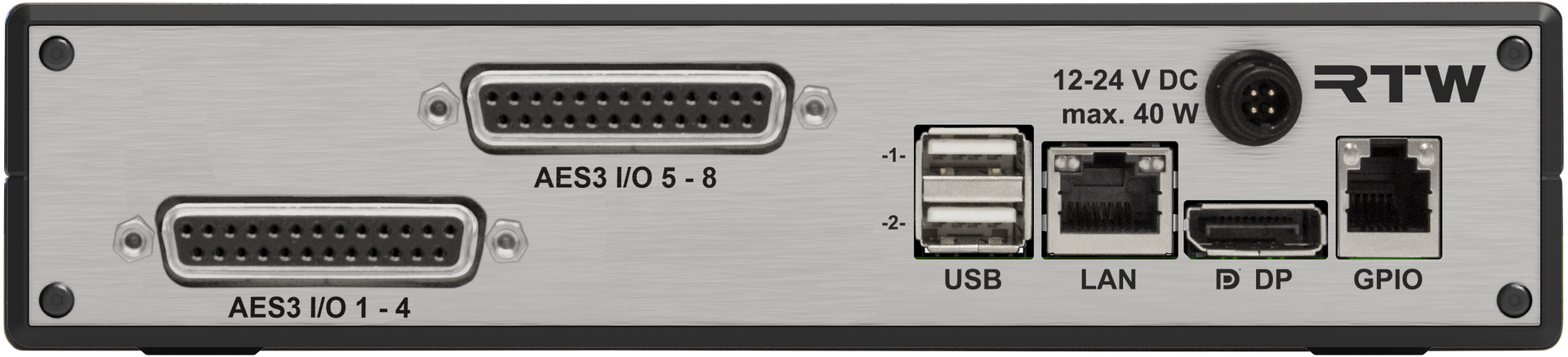

TMxCore with Digital D-Sub
230013NR
- 16 digital inputs (8 x AES3 In, D-Sub)
- 16 digital outputs (8 x AES3 Out, D-Sub)
TMxCore with Analog-Digital D-Sub
230011NR
- 8 analog inputs balanced (D-Sub)
- 8 digital inputs + 8 digital outputs (4 x AES3 In, 4 x AES3 Out, D-Sub)
Easy Setup with Web-based Interface

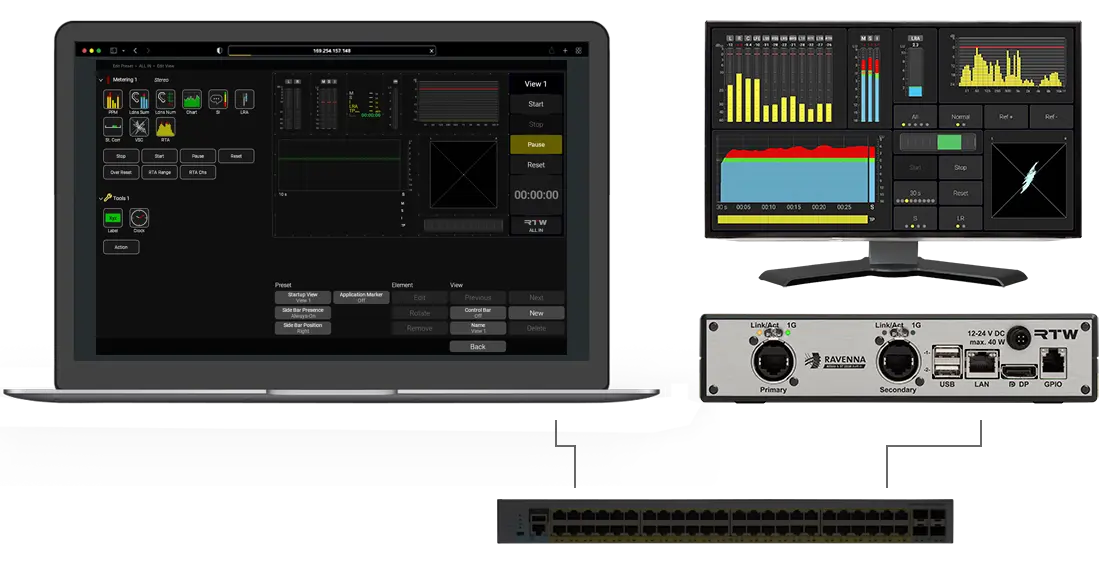

As a true network device, the TMxCore is configured via the network using a standard web browser.
This interface allows you to adjust overall settings, manage presets, and more. Additionally, you can control access to the device, restricting specific features to prevent accidental use during live performances.
Design Your Own View Pages

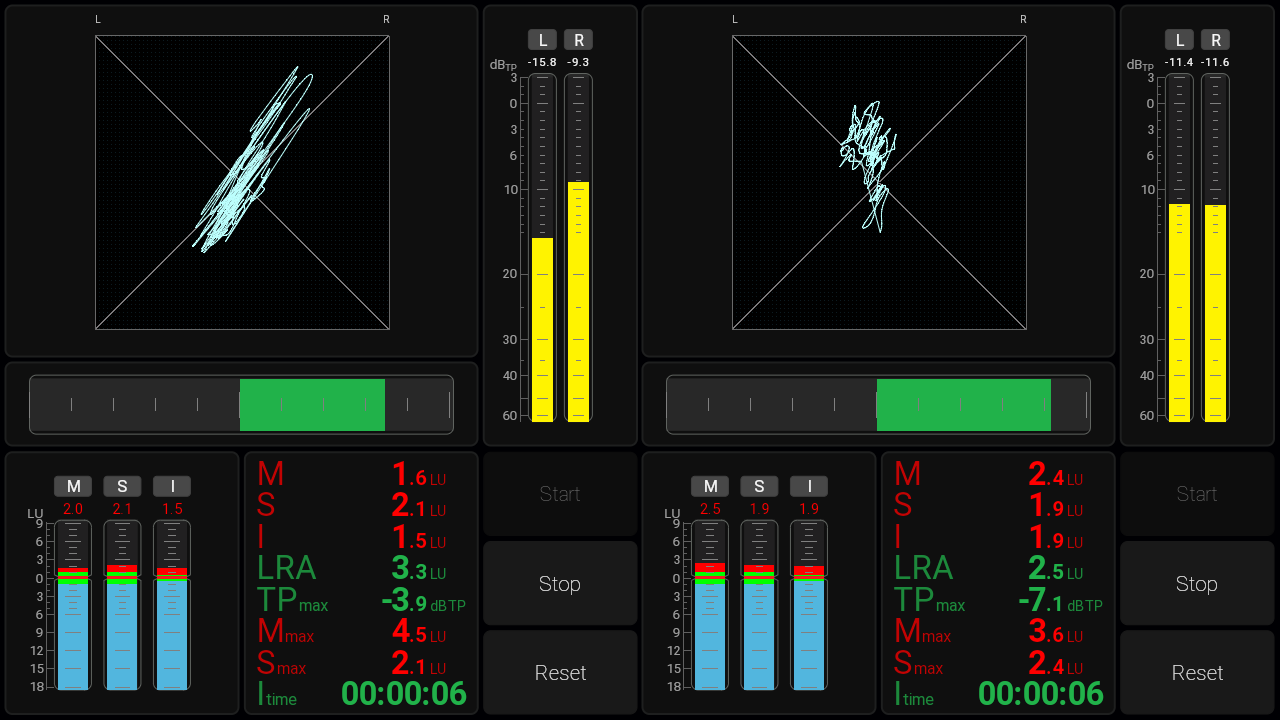

TMxCore lets you design your own view pages.
For each instrument you can decide on size, ratio and placement, and several instruments can be rotated to fit your needs.
Buttons can be placed anywhere on the screen, those that are placed in the swipeable side bar are available across view pages.
Who Can Benefit from TMxCore?
TMxCore is specifically designed for networked audio environments, supporting Dante®, Ravenna®, AES67, and ST 2110. In addition to its audio network connectivity, it also provides options for digital AES interface or AES/analog, ensuring compatibility with both modern and legacy infrastructures. No matter whether your audio is networked, digital AES, or analog, the dedicated network control port ensures that TMxCore is always under reliable network control.

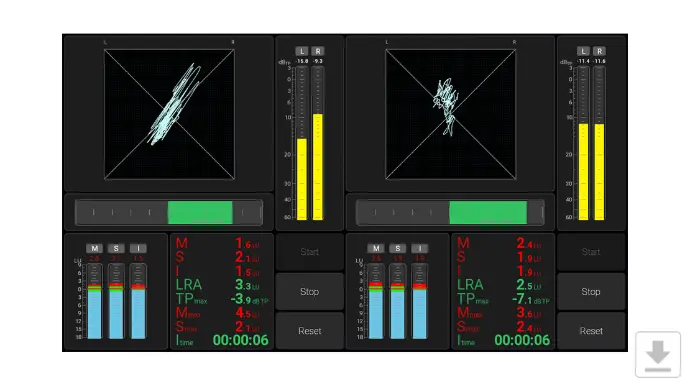

This versatility makes TMxCore ideal for a wide range of professional audio applications, including Broadcast, Post Production, Installed Sound, Radio, and more.

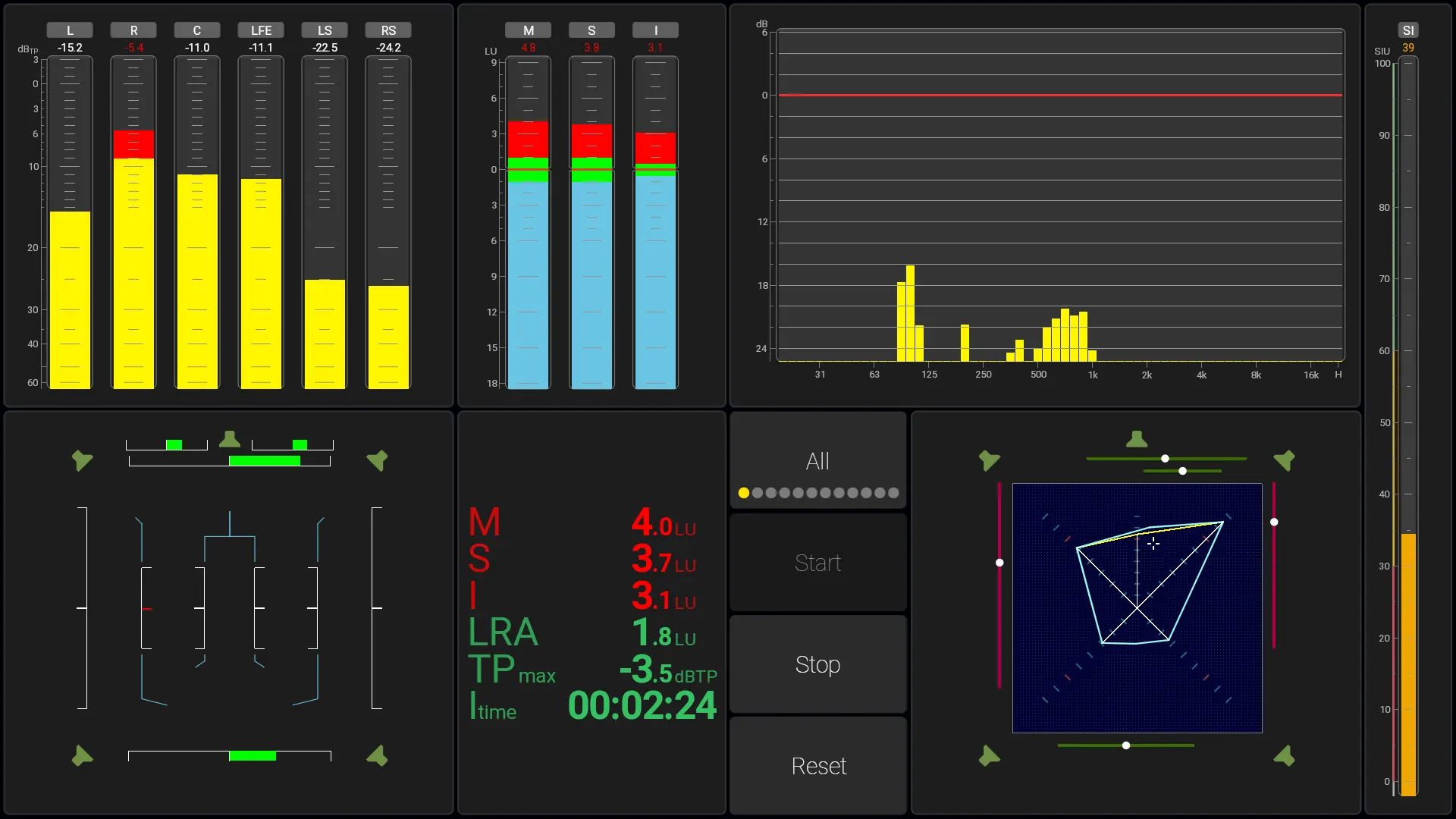

Broadcast Live Transmission
With support for Ravenna®/AES67/ST 2110 networks and a robust set of loudness monitoring tools, TMxCore is perfectly suited for live broadcasts, including sports events, music performances, and news transmissions.
Broadcasters can rely on TMxCore to ensure compliance with international loudness standards, delivering consistent and high-quality audio throughout their transmissions.

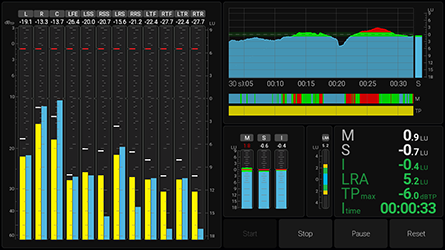

Post Production and Cinema
As post-production studios increasingly adopt Dante® audio networks for immersive content creation, TMxCore stands out with its advanced metering tools, especially for immersive audio and speech intelligibility.
It simplifies adherence to international loudness standards such as R128 and CALM, while also meeting delivery specifications from platforms like Netflix.

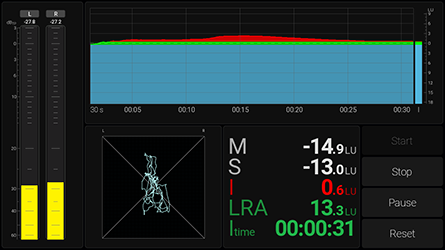

Installed Sound
For audio-over-IP installations in venues such as stadiums, theaters, houses of worship, and event spaces, TMxCore offers a comprehensive suite of metering instruments.
These tools empower sound engineers to optimize audio performance and deliver an enhanced audience experience.

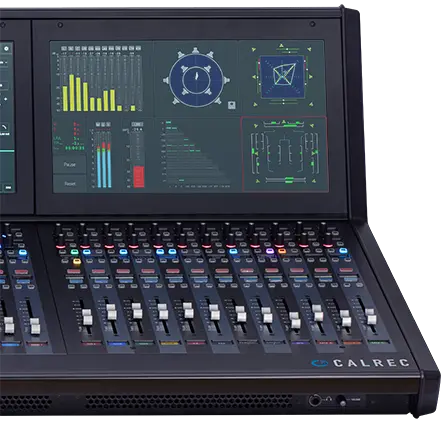

The Future of OEM Integration
TMxCore is more than just a metering engine - it is a flexible, high-performance platform designed to integrate seamlessly into leading broadcast and production consoles. By embedding TMxCore, OEM partners can enhance their products with RTW’s trusted metering technology without compromise.
Why OEMs Choose TMxCore?
Screenless Flexibility
TMxCore delivers all the power of RTW’s TouchMonitor technology in a compact, display-independent format. Console manufacturers can fully embed it into their workflows, keeping the visual design entirely under their own control.
Future-Ready Performance
Equipped with powerful CPU and RAM resources, TMxCore is ready for today’s complex loudness, speech intelligibility, and immersive audio standards.
Seamless Integration
With standardized I/O, network connectivity, and scalable licensing, TMxCore adapts to the architecture of any professional console.
Trusted RTW Quality
Decades of experience in broadcast metering ensure OEMs deliver the highest reliability and compliance to their users.
Flexible Mounting Options

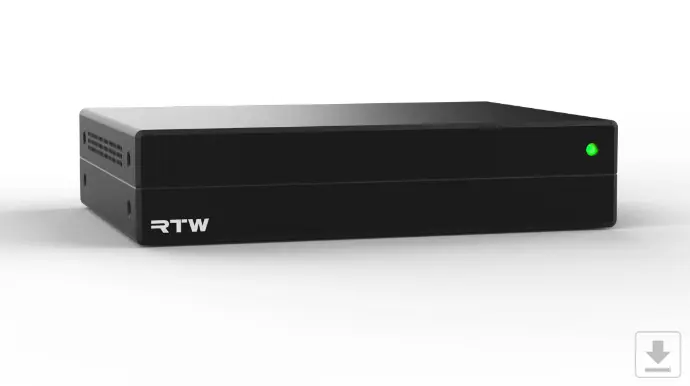

TMxCore is designed for versatile installation.
It can be mounted in a variety of ways using the integrated 1/4-inch mounting holes, making it easy to adapt to different setups.

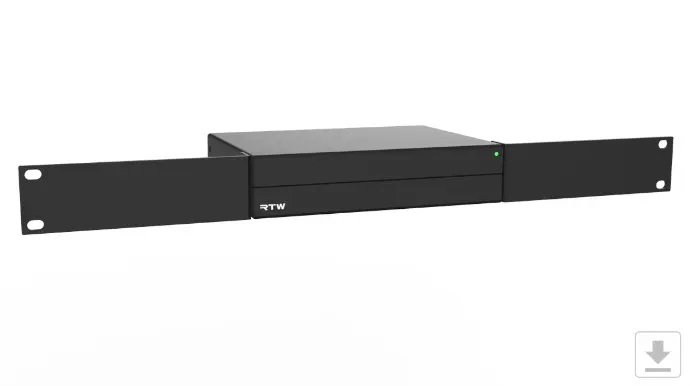

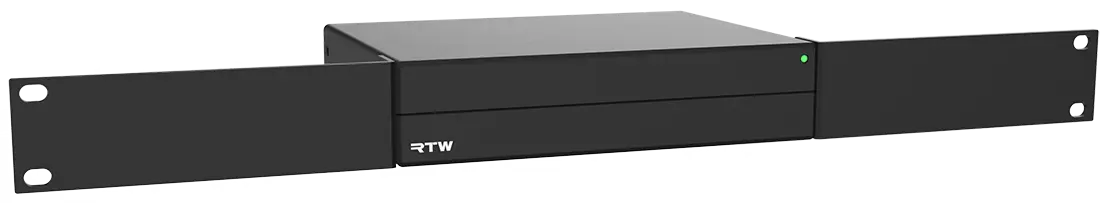

For traditional installations, TMxCore also comes with a rack-mounting kit included, allowing seamless integration into standard rack environments.
