Basic Software

All relevant measuring tools for immediate use

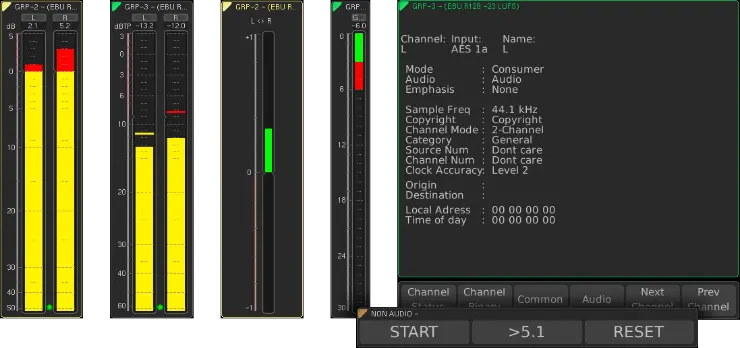

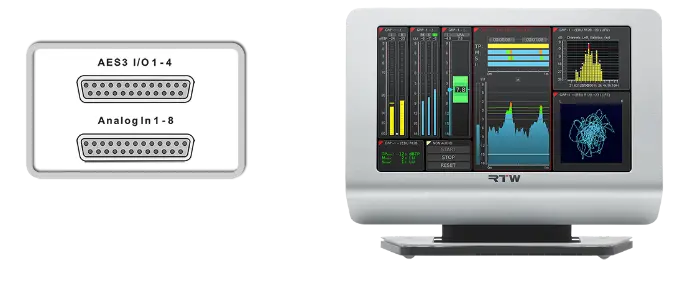

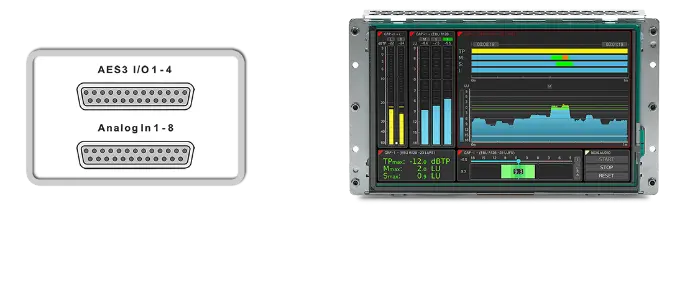

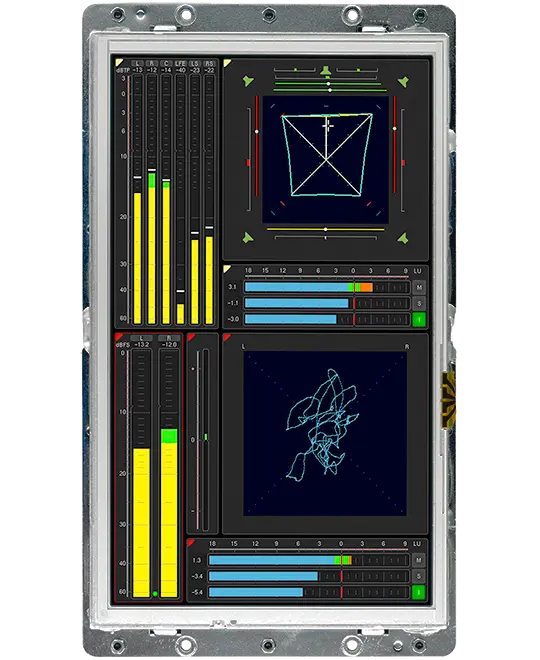

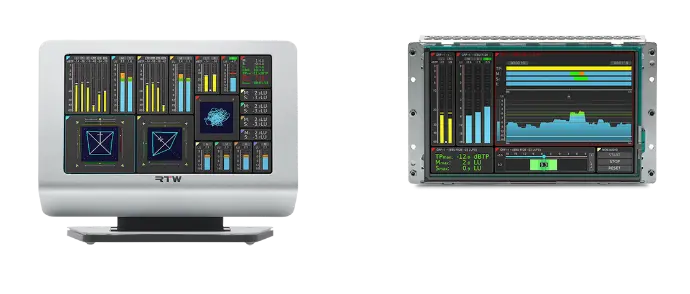

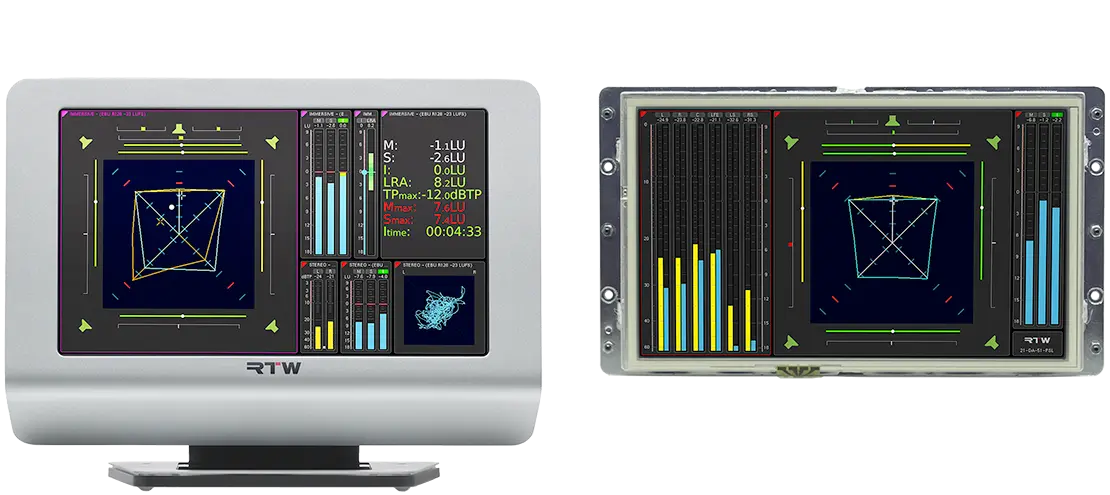

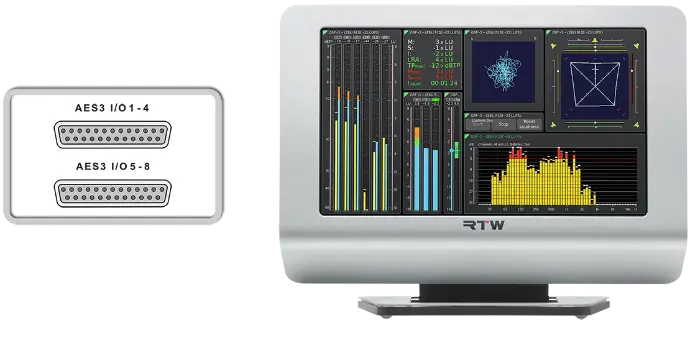

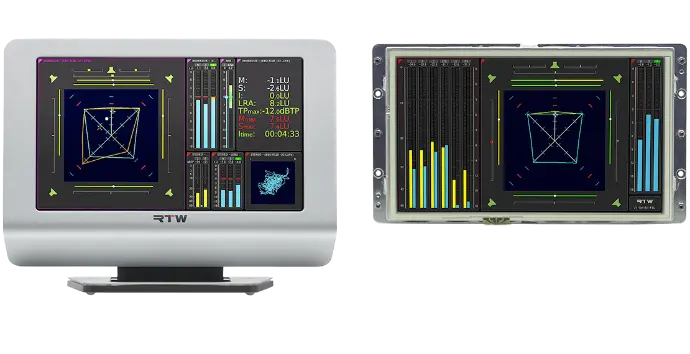

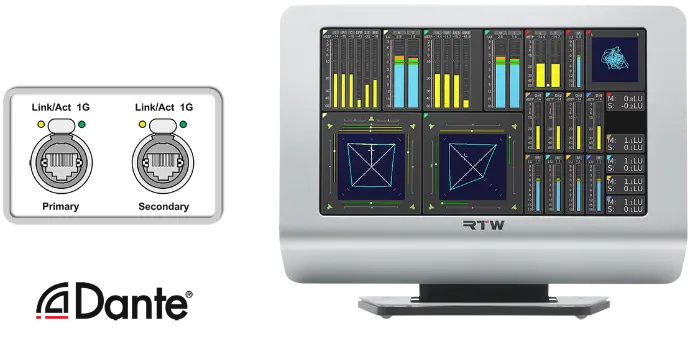

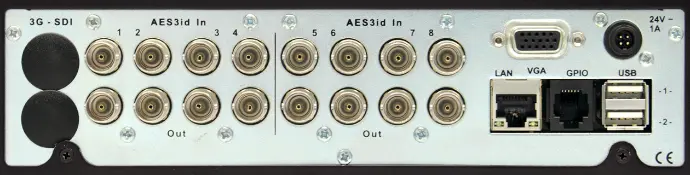

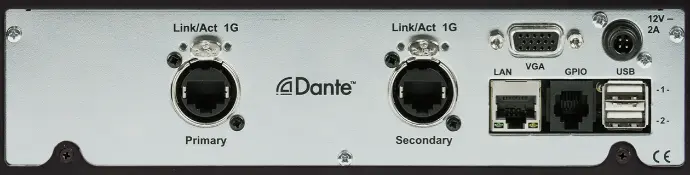

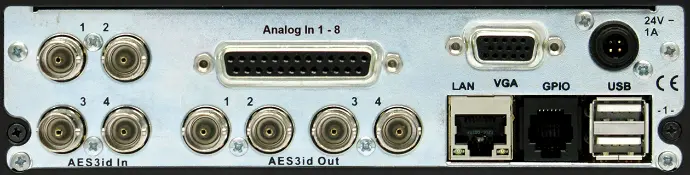

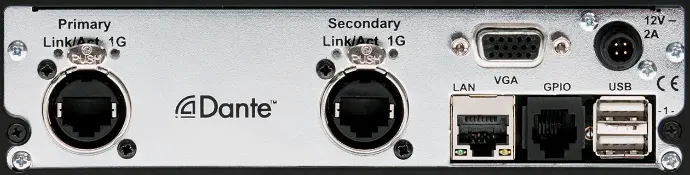

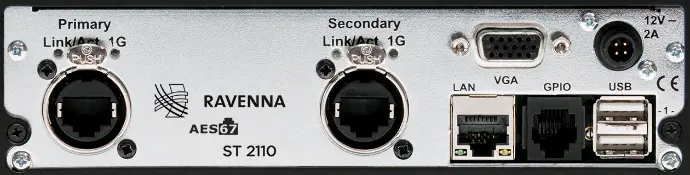

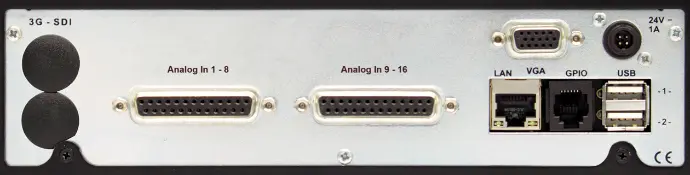

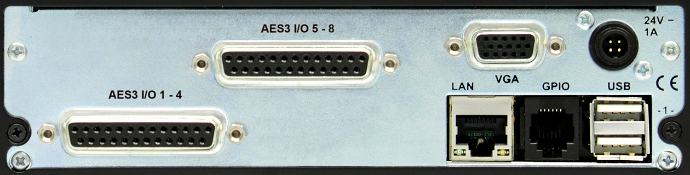

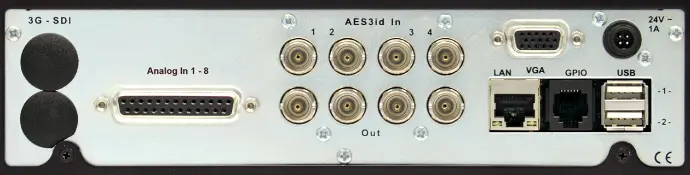

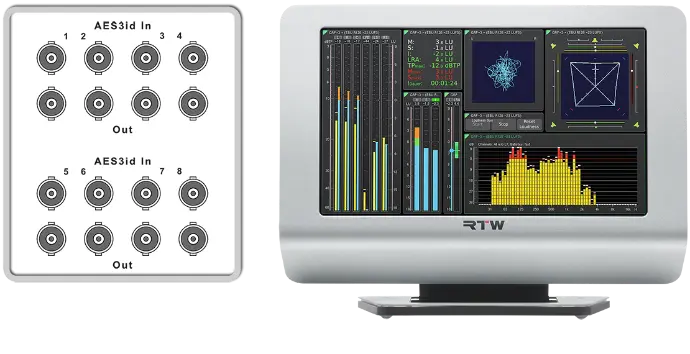

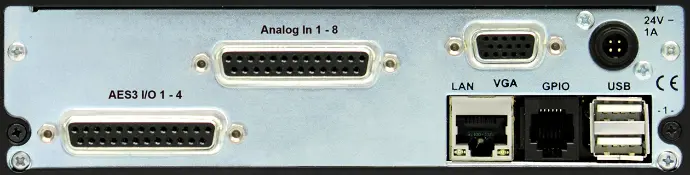

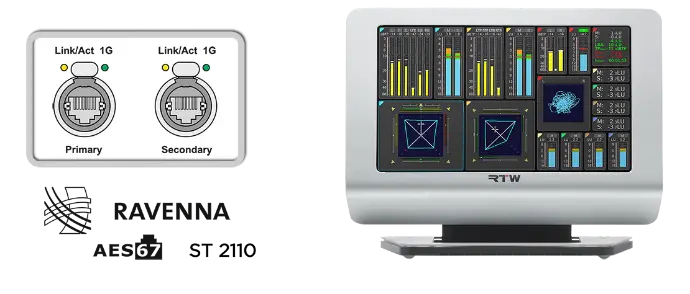

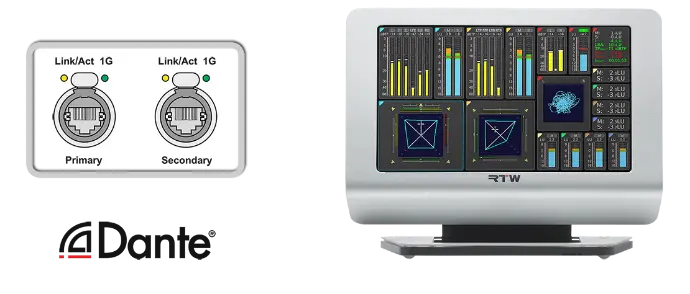

Every TouchMonitor of the TM7, TMR7 and TM9 series comes with a basic software package. Beside the control functions, this software is able to process the signals of up to 4 routed channels in a maximum count of 4 groups at a time (up to 4 x Mono, 2 x 2-channel Stereo, 1 x 2-channel Stereo and up to 2 x Mono; no 3.1).

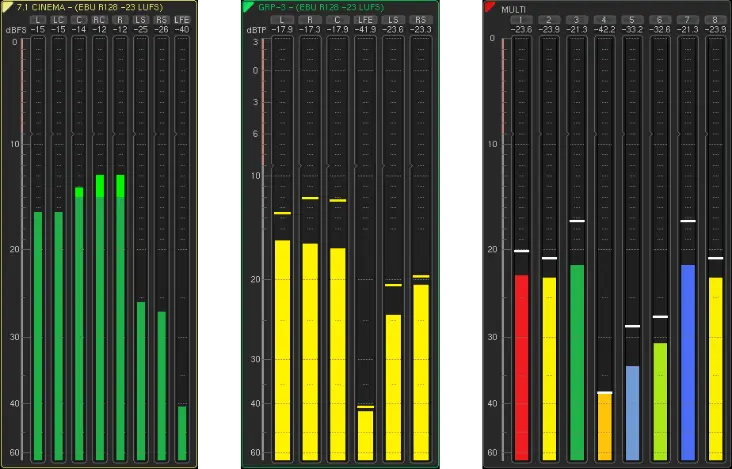

• 4-channel PPM and TruePeak Meter for 4 x Mono to 2 x Stereo
• Stereo Correlator for display of phase relationship, AES Status, Gain Reduction, Global Keyboard

Loudness and SPL Display

Loudness Analysis and Handling with Easy to Read Instruments

SW20002

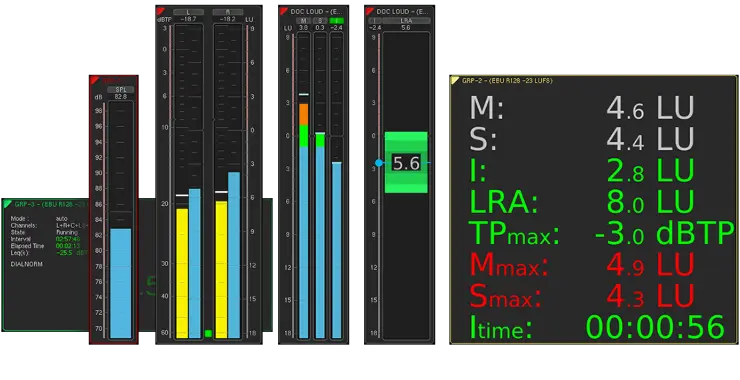

The Loudness and SPL Display license expands the basic 4-channel PPM with graphical and numerical instruments for Loudness measurements as described in current guidelines (EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM, LEQ(M), TASA, SAWA), and the LRA instrument for the graphical display of the Loudness Range. A customer-specific mode allows the user to modify parameters.

In addition, the license provides the SPL display mode with various weighting filters and integration times as well as reference level adjust to calculate an SPL value from an electrical signal. Dialnorm values can be meausred with activated Multichannel Mode license (SW20001).

If you additionally activate the Timecode Reader license (SW20008), you are able to execute timecode-based loudness measurements and loudness recalculation.

• Full implementations of the latest loudness standards and recommendations
• Bargraphs for summed Loudness with Momentary, Shortterm, Integrated values, and Loudness Range (LRA)
• Numerical display of all relevant values like M, S, I, LRA, TPmax, Mmax, Smax, Itime

Real Time Analyzer

Monitor the universal quality of your sound

SW20003

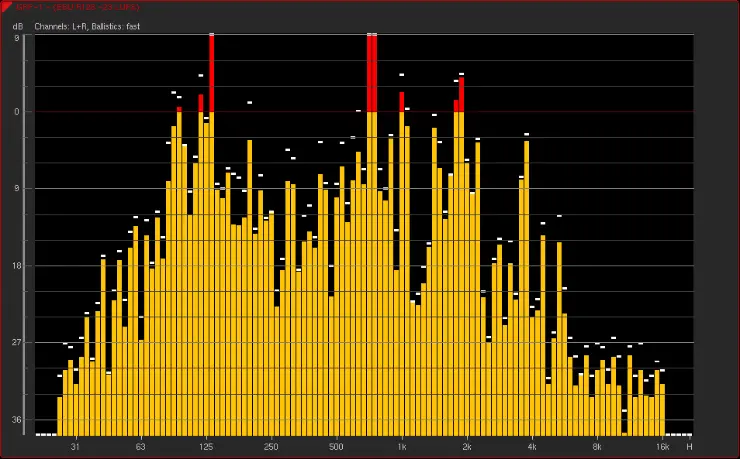

Like the human ear senses an audio signal, the RTA (Real Time Analyzer) displays the spectral content of the selected input channel(s) using 31 filter bands in 1/3 octave steps, 61 filter bands in 1/6 octave steps or 120 filter bands in 1/12 octave steps.

Similar to an oscilloscope, it measures the magnitude of an input signal versus frequency within the full frequency range of the instrument.

• Display of the spectral content of one or more input channel(s)
• Filter bands in 1/3 octave, 1/6 octave, or 1/12 octave steps
• Switchable H band, selectable low frequency range

Surround Sound Analyzer

The unique, need-to-have tool

SW20004

Unique to the TouchMonitor, the Surrond Sound Analyzer is a pioneering and unique visualisation tool showing the relevant technical and subjective parameters of surround signals in a fast and intuitive way.

• Comprehensive, yet compact overview of multichannel audio signals up to 7.1
• Easily read the perceived acoustic focal point
• Phase Correlation and LFE phase warning to avoid downmix errors

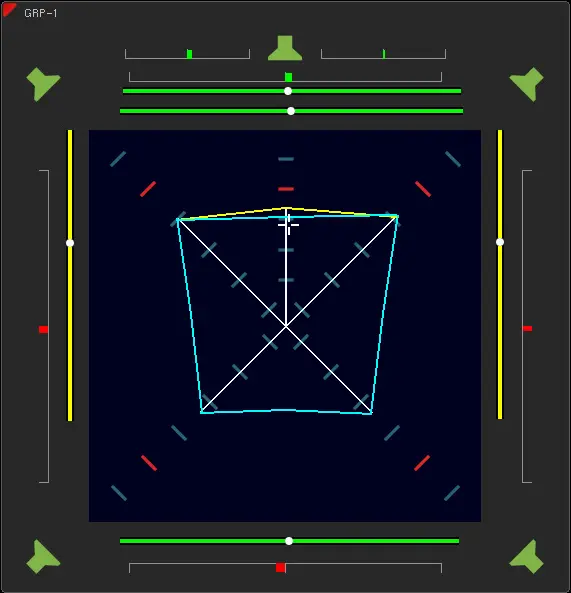

The Surround Sound Analyzer displays a correctly-scaled graphical representation of the relative volumes in the surround sound field.

The interaction of levels (volume, sound pressure level, or loaudness) and the correlation of all channels in the overall surround sound is displayed graphically, providing a very clear overview.

The graphical display has been carefully designed so that the dynamic behaviour of all display elements corresponds to the subjective listening impression, showing the balance of the surround program intuitively and at a glance.

Read more about the Surround Sound Analyzer

Radar Display

The unique high resolution circular Loudness visualization

SW20005

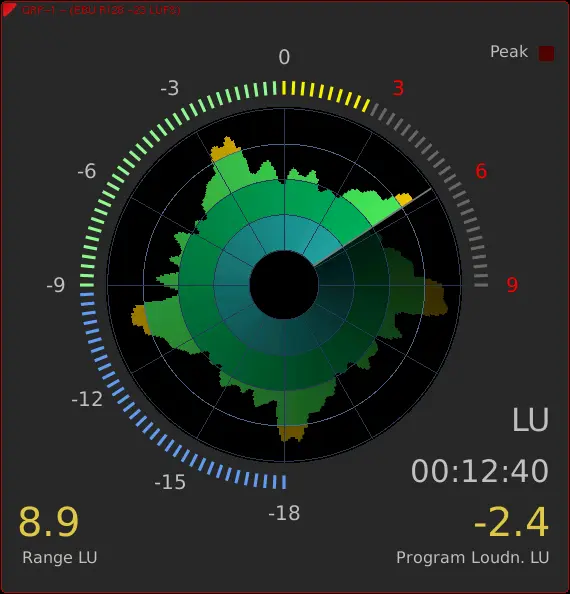

The Radar instrument, developed by TC Electronic, is a high-resolution display of momentary loudness and loudness history in a single, unique Radar view. The circular, color-coded display makes it easy to balance audio visually and to see when level falls below or exceeds the end-listener's loudness range tolerance.

• High-resolution circular loudness display (Radar)
• Display of momentary loudness and loudness history
• TruePeak warning and numerical descriptors with selectable value types

The moving outer ring of the instrument represents the Momentary loudness value changing its color when passing the Target Level. The area inside of this ring showing concentric circles is called Radar view and represents the Shortterm loudness history (1 minute to 24 hours). The thicker circle represents the Target Level, its outer part shows exceedings, the inner part shortfalls.

It is a tremendous help for a mixing engineer or a video editor to know which radar area to stay inside. For example, film sound may fall outside the normal broadcast expectations.

The radar is complemented by a true-peak warning and by two descriptors to characterize the entire loudness ‘landscape’ of a program, film or music track precisely. By default, the numbers displayed are program loudness and loudness range.

Premium PPM and Vectorscope

Still better measuring with special scales and audio vectorscope

SW20006

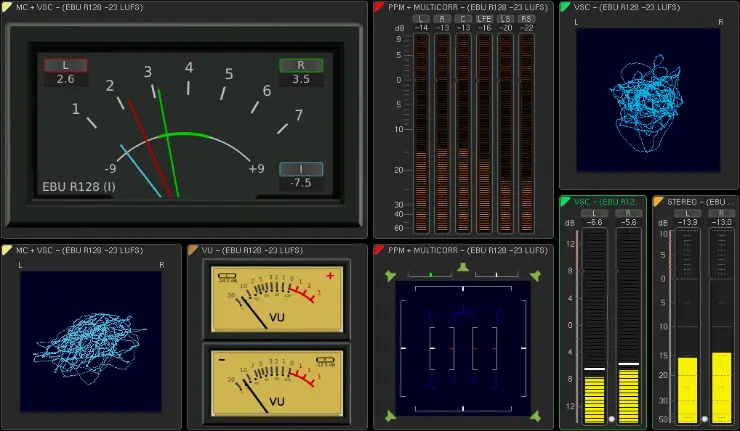

The Premium PPM and Vectorscope license expands the Basic 4-channel PPM (standard software) with additional scales (Zoom, SMPTE, NHK, ARD+9, et al.), additional display modes (segment, classic), and PPM/VU moving coil instruments with different scales and functions. It also provides up to four 2-channel Audio Vectorscopes and a separate phase meter.

With Multichannel Mode license (SW20001) installed, the Multichannel PPM is also extended with the functions of the Premium PPM. Then, the Multi-Correlator with up to 10 phase meters is available.

• Full implementations of the latest loudness standards and recommendations
• Bargraphs for summed Loudness with Momentary, Shortterm, Integrated values, and Loudness Range (LRA)

• Numerical display of all relevant values like M, S, I, LRA, TPmax, Mmax, Smax, Itime

Timecode Reader

Decode and display SDI embedded or LTC timecode

SW20008

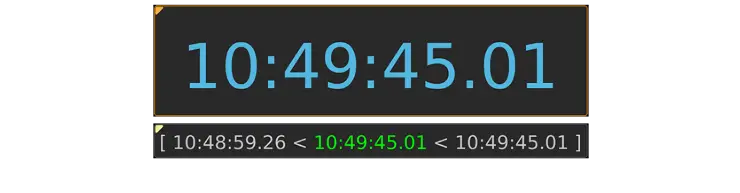

The Timecode Reader license provides the Timecode function as a separate mode generating an individual audio group providing the Timecode Reader instrument. It is used to decode and to display an SDI-embedded or LTC timecode using the 3G-SDI interface (if installed) or one of the selectable audio inputs.

With the activated Loudness and SPL Display license (SW20002), it can be used with Loudness and Logging applications. Then, the Loud. Recal. instrument for the control of a loudness measurement by a timecode either with recalcualtion or without is available.

• Decoding and display of SDI-embedded or LTC timecode
• Timecode controlled loudness measurements (with SW20002)
• Continuous recalculation (with SW20002)

BLITS

Generate and comprehensively analyze test signals

SW20013

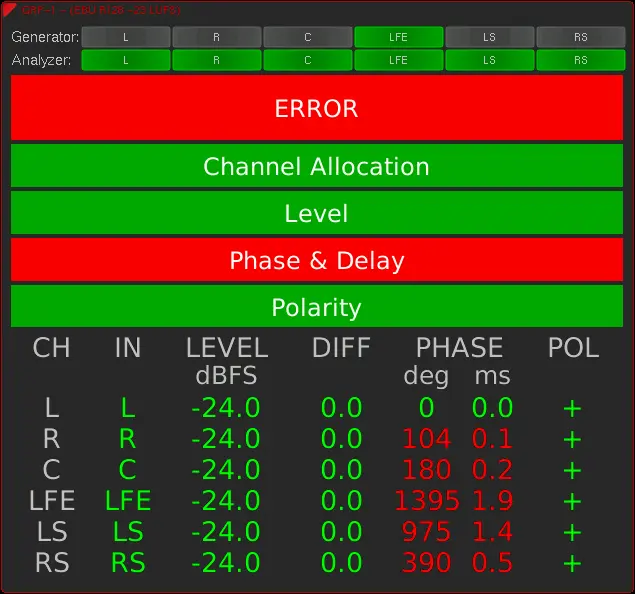

The BLITS instrument is used for analyzing of BLITS signals and for generating BLITS and Stereo Ident signals (EBU-3304, GLITS). The especially developed analyzer for the BLITS test tone sequence allows a user friendly and comprehensive analysis and display of level, channel allocation, phase, delay and polarity of incoming digital audio signals in 5.1 mode.

• Generating BLITS and Stereo Ident signals
• Comprehensive analysis of incoming BLITS signals
• Display of signal quality

BLITS (Black & Lane's Ident Tones für Surround) is a tool to allow testing for channel allocation, level and phase of 5.1 surround signals. Developed by Martin Black and Keith Lane from Sky TV in London in 2004, this sequence is widely used in international broadcasting.

Logging Data Server & Chart

Log and document loudness over time

SW20014

The Logging Data Server license expands the feature set of your TouchMonitor with the Logging and Chart instruments (Loudness and SPL Display license (SW20002) required).

• Logging and documentation of loudness measurements
• Comprehensive analysis of the loudness course
• Optional recalculation

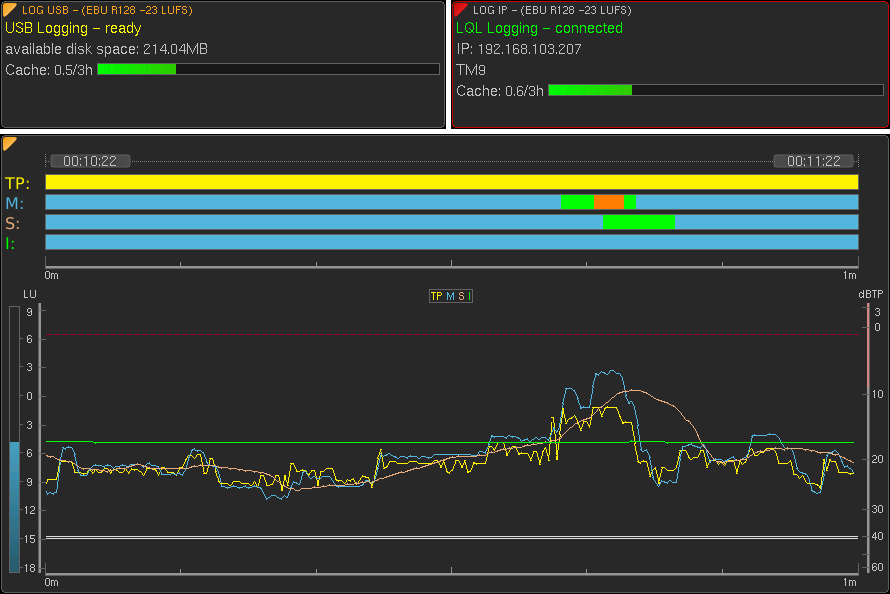

The Logging instrument collects data of Loudness and TruePeak measurements of up to two audio groups of a preset and allows you to store it on a USB flash drive or to send it via IP connection to the free LQL - Loudness Quality Logger PC software for analyzing.

The Loudness Chart instrument is used for displaying and analyzing loudness measurement over time directly on TouchMonitors display.

If the Timecode Reader licence (SW20008) is enabled, loudness measurements can also be controlled via timecode, including the option of having it recalculated in case the same time span is measured repeatedly.

Immersive Sound Analyzer

Intuitive detection of the spatial balance of immersive surround programs

SW20015

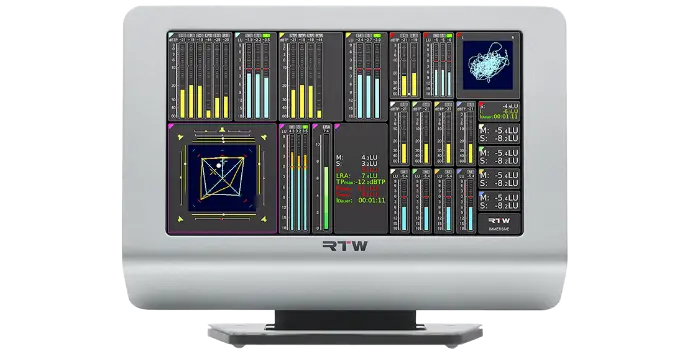

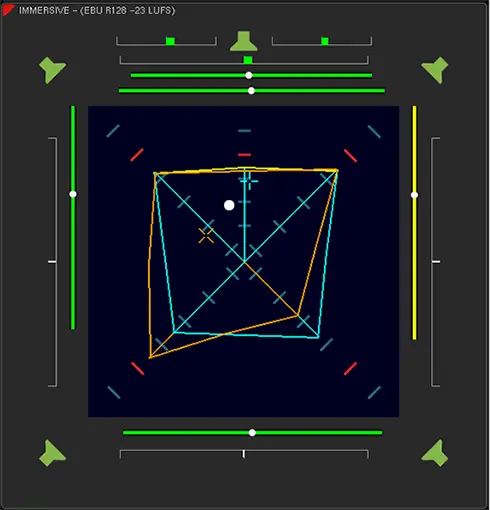

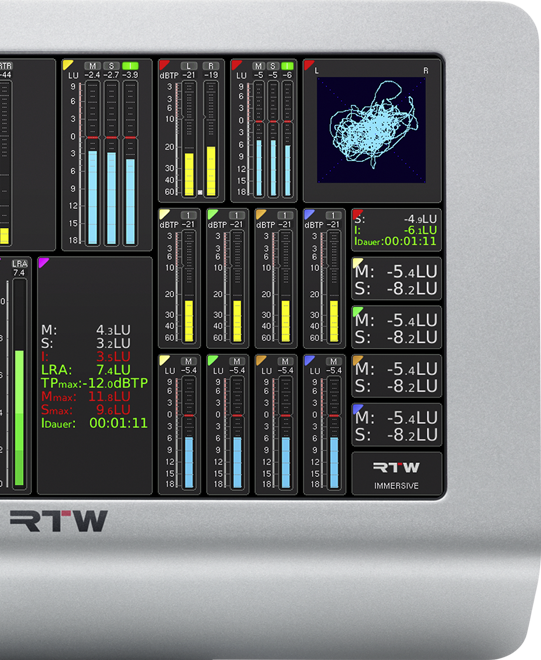

he face of the license is the ISA - Immersive Sound Analyzer. It combines the features of two Surround Sound Analyzers and visualizes the relationship between the instruments. So all relevant technical and subjective parameters of formats like 5.1.2, 5.1.4, 7.1.2 or 7.1.4 evaluated in a fast and intuitive way. ISA also allows overall loudness measurement across audio groups.

• Comprehensive, yet compact overview of immersive audio signals
• Easily read the perceived spatial focal point
• Phase Correlation and LFE phase warning to avoid downmix errors

Main components of these formats are the two layers called Main Bed and Upper Bed. The Main Bed includes the 5.1 or 7.1 part of the surround format, the Upper Bed the 2.0 or 4.0 part. On the ISA, the beds are represented by overlaying displays each similar to a Surround Sound Analyzer. A variable moving point gives response about the loudness relationship between the beds resp. the position and height of the dominant signal and the subjective perceived spatial focal point.

Read more

TC-RTW

Update your TC Electronic branded TouchMonitor to RTW standards

SW20021

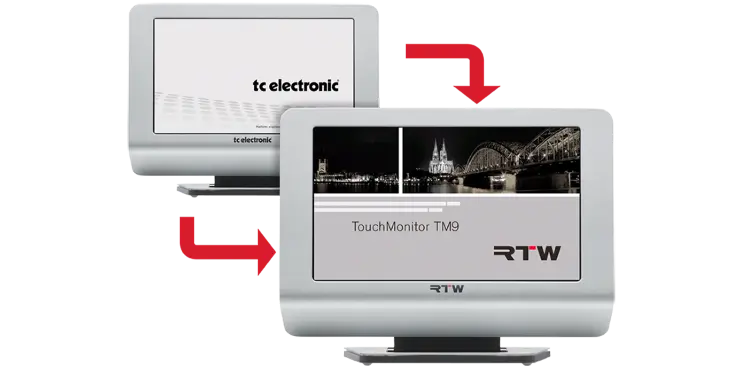

The TC-RTW license converts TouchMonitor devices that are branded TC Electronic to RTW latest standards, allowing installation of upcoming licenses with new product functionalities (e. g. Immersive Sound Analyzer).

• Update your TC Electronic TouchMonitor to the latest RTW standards
• Allows you to use the latest licenses and features
• Re-labeling to RTW TouchMonitor

After the license has been activated and you have updated the firmware, the unit will start with the RTW boot screen and same feature set as current RTW devices. Additionally, customers get the RTW logo as label to replace the TC logo.
